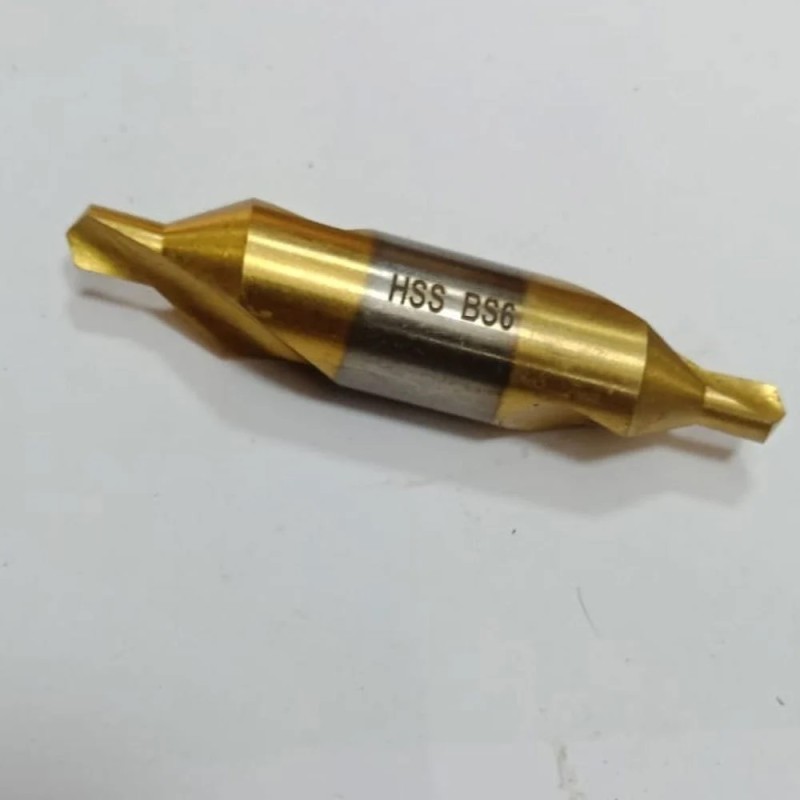

The Center Drill BS-6 is a long pilot combination center drill, manufactured as per British Standard BS 328 Type 6.
This tool is specially designed for deep center hole drilling and accurate alignment in components where a longer pilot depth is required.
Made from premium High-Speed Steel (HSS) , the BS-6 provides excellent rigidity, heat resistance, and dimensional accuracy.
It features a 60° included angle with an extended pilot, allowing improved guidance and concentricity during turning and grinding between centers.
The BS-6 is ideal for heavy-duty CNC machining, precision turning, and shaft center hole preparation.
| Common Info | |
| HSN Code | 82075000 |
| Country of Origin | India |
| Specifications | |
| Type | Center Drill BS-6 (British Standard Type 6 – Long Pilot Type) |
| Coating | Uncoated |
| Drill angle | 60° |
| Size | Pilot Dia (d1) = 1/4" Body Dia (d2) = 5/8" Pilot Length (l1 max) = 3/8" Pilot Length (l1 min) = 5/16" Overall (l2) = 3" |
| Shank Diameter | 6 mm |
| Application | Steel / Stainless Steel / Aluminum |
